Description

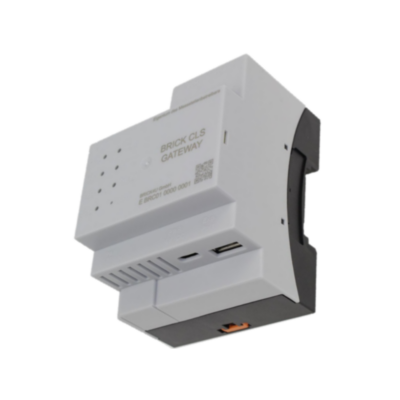

The BRICK GATEWAY Full is a data switch that forwards OMS data and data from the MESH network to the cloud. In addition, the BRICK GATEWAY Full represents a communication adapter and a submetering unit in terms of the requirements of smart metering and smart submetering. Thus, this product is able to establish a corresponding connection with a smart meter gateway (CLS).

The BRICK GATEWAY Full is suitable for all target groups that want to use their OMS data in connection with the cloud.

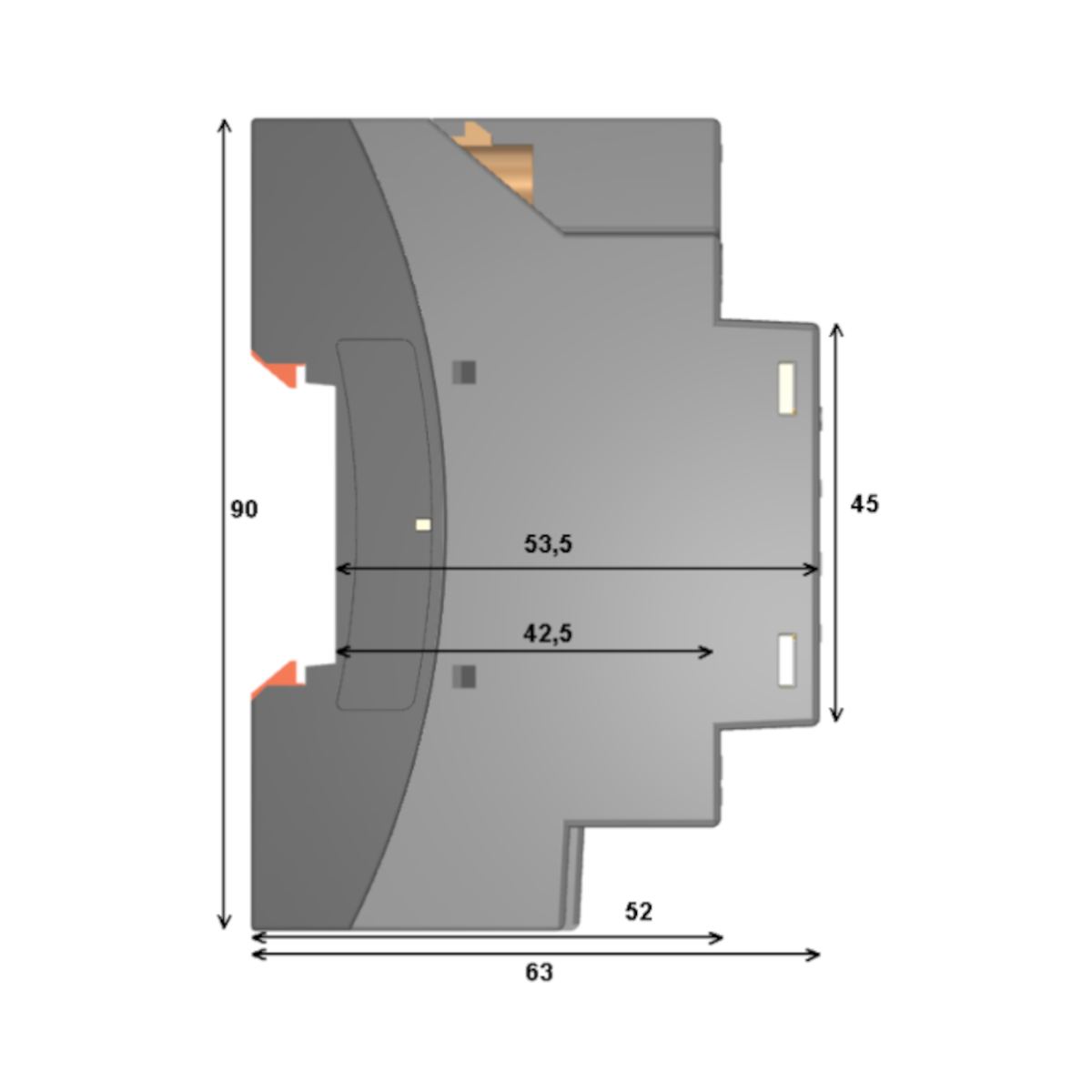

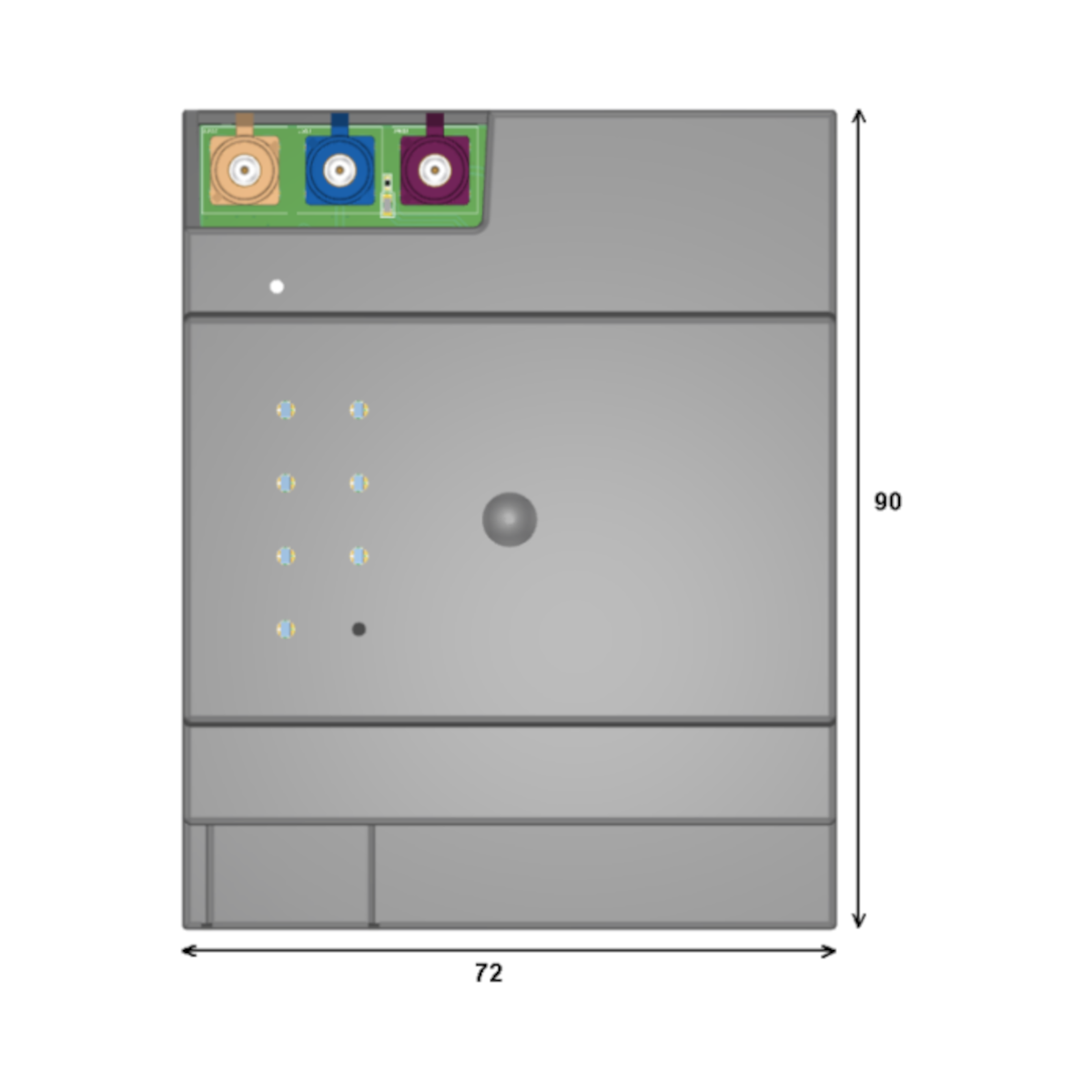

Mounting types: clamp mounting on 35 mm top-hat rail or wall mounting (accessories required).
Operating temperature range: -25°C to +55°C
Storage temperature range: -25°C to +70°C
Enclosure colour: upper part: light grey (RAL 7035); lower part: jet black (RAL 9005)
Fire protection class: UL94 V-0
Degree of protection: IP30
Protection class: II (protective insulation)
